5mm T-Slot Router Bit
$38
- Great for T-slots, picture slots, and keyhole mounting
- Double-bladed carbide stays sharp longer
- Appropriate for cutting in solid wood and paneling
- Use with the 8 mm collet
Quantity:
Product ships in 2-5 days
Shipping cost and delivery options are calculate in the checkout. Delivery time and cost vary base on your location.
5mm T-Slot Router Bit - SF1-8-TSC
Product Overview
This T-slot bit adeptly handles a wide range of undercut operations. From insetting cables to cutting perimeter T-slots and keyhole mounting, this brazed carbide bit stays sharp and durable, reducing runout and ensuring quality cuts throughout its lifetime.

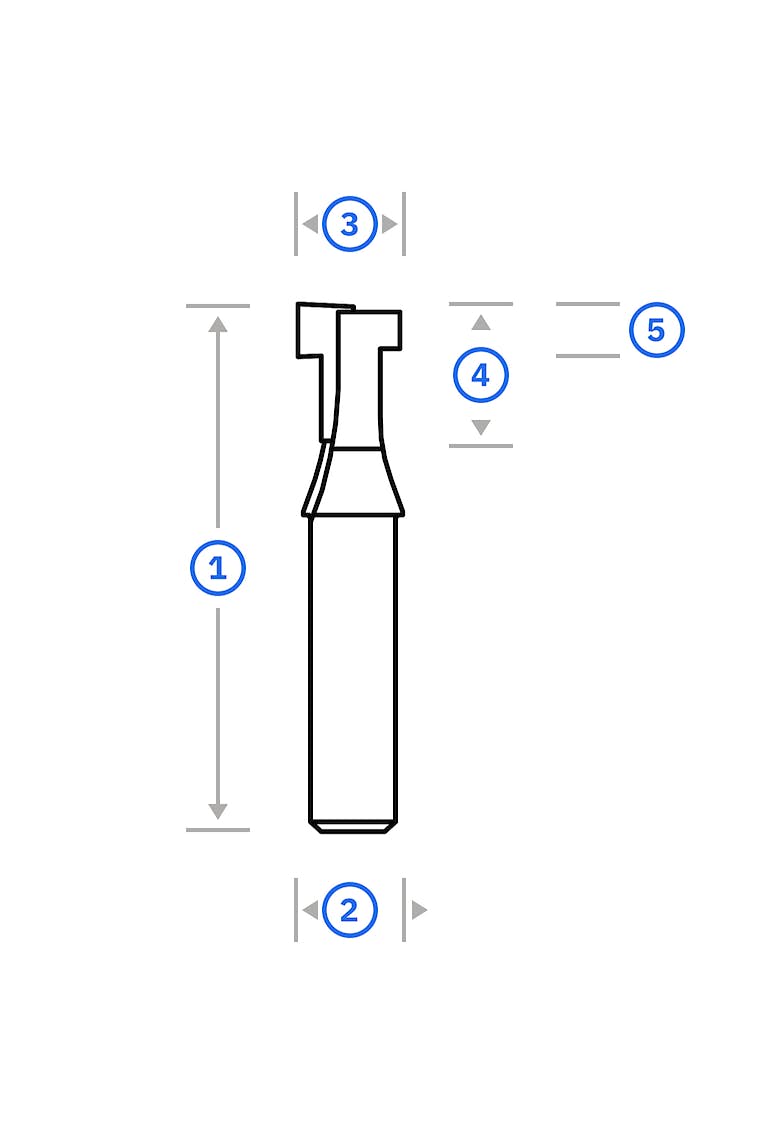

Overall Length: 50 mm
Shank Diameter: 8 mm
Cutter Diameter: 10.5 mm
Flute length 1: 13 mm
Flute length 2: 5mm
Cutter Neck Diameter: 5 mm
Geometry: T-Slot, 5mm x 13mm
Material: Brazed Carbide
Related Products
8mm X 35mm Up-Spiral Flat Router Bit
$95
Take advantage of more of Origin’s Z-axis travel range with this 35 mm cutter length. Three flutes provide cutting advantages in a wide range of materials, from foam to hardwood. Increased pass depth will make your Origin projects more efficient without compromising on cut quality or stability. The shaft is marked for exact collet clamping to save time during bit changes.
16mm X 16mm Clearing Router Bit
$159
This clearing bit will change the way you work with Origin. Its 16 mm diameter will make quick, clean work of all your pocketing operations, and make Origin a much more efficient tool for a wide range of projects. The three-flute geometry reduces load on the spindle, decreases heat build-up, and keeps your cutter edges sharp and clean through hours of cutting.
15º Dovetail Router Bit
$43
This 15° dovetail bit can be your go-to bit for all your dovetail joinery. Dual-edged brazed carbide blades cut consistently and accurately in even the hardest woods. Its 15° incline is designed for European designs (the American dovetail is typically 14°), giving you greater freedom to take on a wider variety of projects.
Frequently Asked Questions
Yes, this bit's shank will fit the 8 mm collet that's part of the Complete Collet Kit
Resin, sap, and adhesives will build up on your cutter edge over time. This generates more friction on your cutter and accelerates edge degradation. Keep your cutters clean with a small brass brush, citrus cleaner and a rag.
