8mm X 35mm Up-Spiral Flat Router Bit
$95
- 35 mm cutter length lets you use more of Origin’s Z-axis travel
- Three flutes stay sharp longer
- Appropriate for a wide range of materials, for both roughing and finishing passes
- Use with the 8 mm collet
Quantity:
Product ships in 2-5 days
Shipping cost and delivery options are calculated in the checkout. Delivery time and costs vary based on your location.
8mm X 35mm Up-Spiral Flat Router Bit - SF1-8-8DP
Product Overview

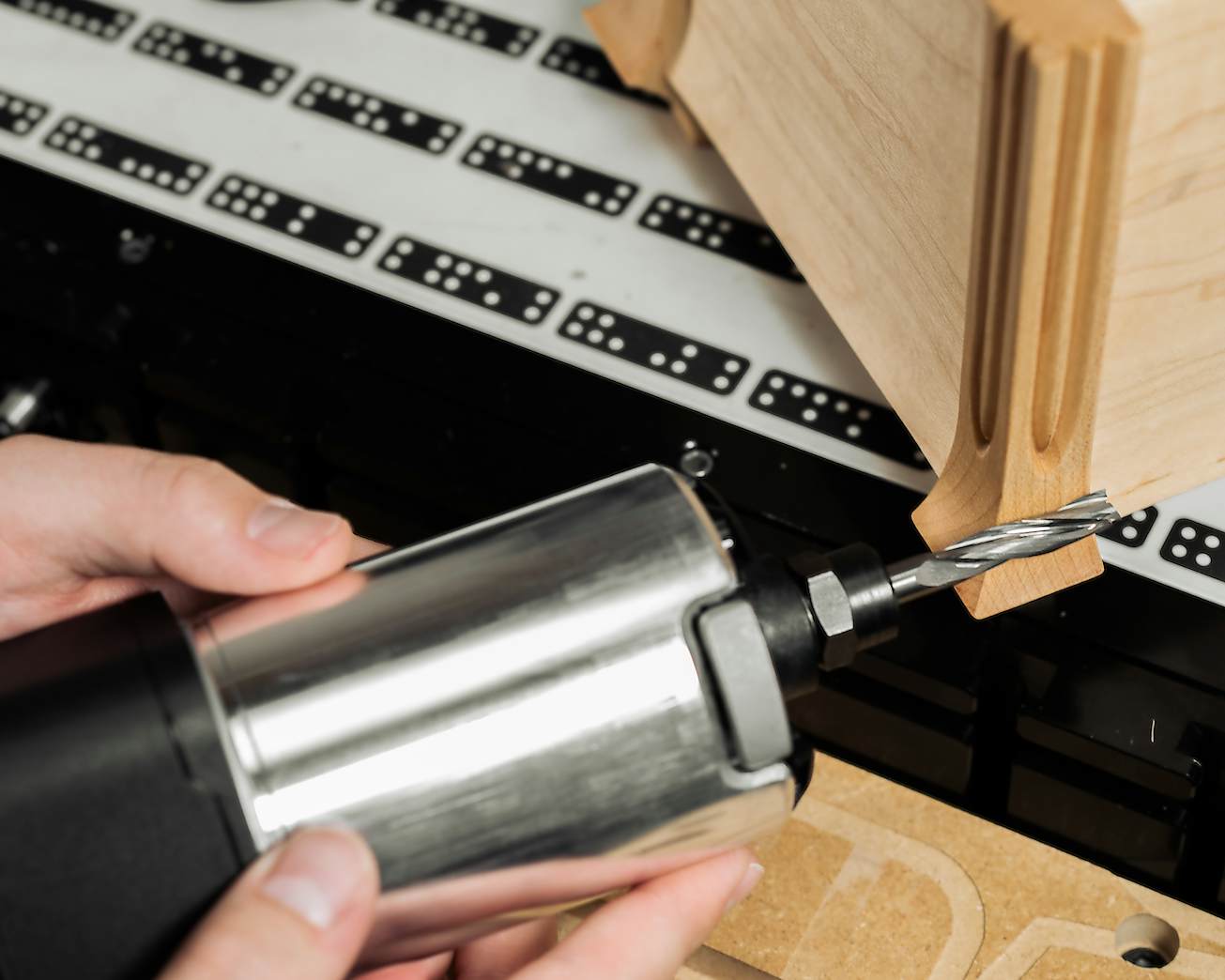

Take advantage of more of Origin’s Z-axis travel range with this 35 mm cutter length. Three flutes provide cutting advantages in a wide range of materials, from foam to hardwood. Increased pass depth will make your Origin projects more efficient without compromising on cut quality or stability. The shaft is marked for exact collet clamping to save time during bit changes.
Overall Length: 80 mm
Shank Diameter: 8 mm
Cutter Diameter: 8 mm
Cutter Length: 35 mm
Usable Length: 47 mm
Geometry: Upcut, Spiral, 3 Flute
Material: Solid Carbide
Related Products
⅛” X ¼” Up-Spiral O-flute Router Bit
$32
The ⅛” polished O-flute bit is a great go-to bit for making shallow cuts in a wide variety of acrylics and non-ferrous metals. The polished flute prevents nasty chip build-up that can compromise cut quality and decrease cutter longevity, and the shorter profile contributes to overall durability. Great for cuts up to ¼” in depth.
16mm X 16mm Clearing Router Bit
$159
This clearing bit will change the way you work with Origin. Its 16 mm diameter will make quick, clean work of all your pocketing operations, and make Origin a much more efficient tool for a wide range of projects. The three-flute geometry reduces load on the spindle, decreases heat build-up, and keeps your cutter edges sharp and clean through hours of cutting.
⅛” X ½” Up-Spiral O-flute Router Bit
$38
An ideal bit for many types of acrylic cutting. The polished flute prevents nasty chip build-up that can compromise cut quality and decrease cutter longevity. Appropriate cutter geometry for both acrylics and non-ferrous metals. Great for cuts up to 1/2” in depth.
Frequently Asked Questions
Yes, this bit's shank will fit the 8 mm collet that is part of the Complete Collet Kit
You can find a complete table of cut spec recommendations for this bit here.
The up-spiral design pulls material up and out of your cuts. This can leave a little fuzz on the top edge of your material but this is easily removed with a quick rough-up with fine grit sandpaper. Adjacent spoilboards are always recommended when making cuts beyond the edge of your material
The 8mm X 35mm up-spiral flat router bit can cut to a maximum depth of 45mm.
The 8mm X 35mm up-spiral flat router bit is a great option for cutting mortises and tenons up to a total depth of 45mm. The up-spiral design removes material quickly, resulting in excellent cut quality.
Resin, sap, and adhesives will build up on your cutting edges over time. This generates more friction on your bit and accelerates edge degradation. Keep your bits clean with a small brass brush, citrus cleaner and a rag.
