¼” X 1” Up-Spiral Flat Router Bit
$27
- Longer cutter length than our stock ¼” bit
- Increased reach and bit stability in deeper cuts
- Upcut geometry provides excellent chip extraction
Product ships in 2-5 days
Shipping cost and delivery options are calculate in the checkout. Delivery time and cost vary base on your location.

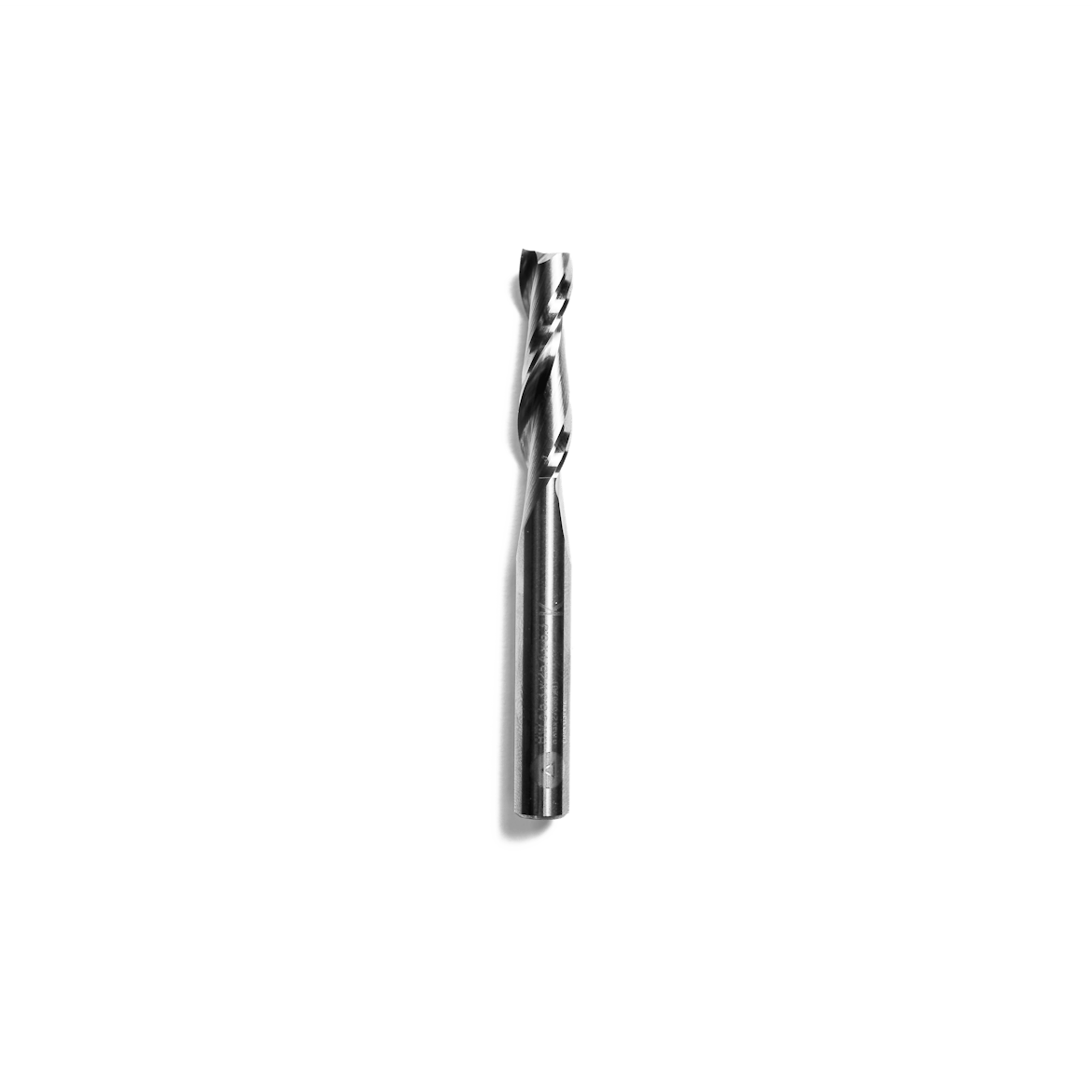

¼” X 1” Up-Spiral Flat Router Bit - SE1-2500-1000C
Product Overview
The ¼” x 1” Up-Spiral Bit has the same qualities as our stock ¼” cutter—including carbide composition, dual flute geometry, and compatibility with Origin’s ¼” collet—with the added benefit of a longer overall length and a longer cutting length for deeper passes and improved stability in deep cuts.
Overall Length: 2.5"
Shank Diameter: 0.25"
Cutter Diameter: 0.25"
Cutter Length: 1"
Geometry: Upcut, Spiral, 2 Flute
Material: Solid Carbide
Related Products
Keep your go-to bits close at hand with the Essential Bit Kit, a convenient way to store and transport the three stock cutters that are included with Origin. The custom foam insert protects your cutters from incidental damage and the Shaper Micro-Systainer makes it easy to always know what to reach for during bit change operations.
$95
Frequently Asked Questions
Is this router bit compatible with Origin?
Yes, this bit will fit the ¼” collet that ships with Origin.
How deep can I cut in a single pass?
As a general rule of thumb for cutting wood, it’s best to never cut deeper than the diameter of the bit in a single pass. So for a ¼” bit, you should not cut deeper than ¼” in a single pass. Because every material is different, it’s best to perform test cuts to find the ideal pass depth and cut specs when working with a new material.
How can I maintain my cutters?
Resin, sap, and adhesives will build up on your cutter edge over time. This generates more friction on your cutter and accelerates edge degradation. Keep your cutters clean with a small brass brush, citrus cleaner and a rag.
What is the maximum cutting depth?
The ¼” x 1” Up-Spiral Router Bit can cut to a maximum depth of 1”.
